[CTFPND-5-A] 7" PND (GPRS, GPIO, Host-USB, 3x RS232, 800x480) *new*

PRODUCT IS CURRENTLY NOT AVAILABLE !
[CTFPND-5-A] 7" PND (<b>GPRS</b>, GPIO, Host-USB, 3x RS232, 800x480) *new*
3D 360° View
  • GSM/GPRS
  • 4x IO, 1x Host USB
  • LED backlight !
  • 3x RS232 !

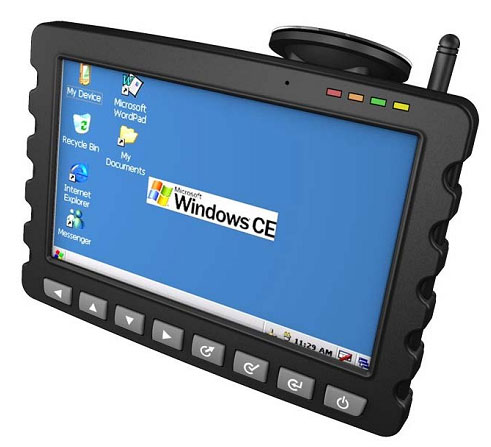

The CTFPND-5 is a 7" Touchscreen PND on Windows CE 5.0 basis with integrated GPS receiver and GSM/GPRS modem. Therefor the CTFPND-5 is the perfect plattform for your telematics application. The extra-high native resolution of 800x480 enables a perfect viewing quality.

This device also is equipped with 4x IO, 1x Host-USB and 3x RS232.

The 8 buttons (with LED backlight) at the front can be used in your software application.

Note : This PND is an offer primarily meant for business and project customers. End consumers should only consider purchasing this device when they have appropriate experience.



Share

RAM :
  • Specifications
  • Data sheets and downloads
  • Customer ratings
Hardware
CPU ARM926EJ 400 Mhz (32bit RISC)
Flash ROM 2 GB NAND Flash
SDRAM 64 MB DDR-II
TFT LCD 7" Touchscreen (16M colors, LED backlight)
Resolution 800x480
GSM/GPRS Integrated (Siemens Tri-Band 900/1800/1900Mhz)
Support Voice/SMS/CS Data/GPRS mode
RS232 2x 3-wired DMA-based operation UART
1x UART fully compatible 16C550
Speaker Integrated
Memory slot SD/MMC
GPS Integrated
Battery Built-in rechargeable Li-Polymer, 2200mAh
Connectors - 2x RS232
- 1x GPIO
- 2x USB device
- 1x USB host
- 1x DC Power
- 1x Power switch
- 1x JTAG (Debug/USB)
Power DC 9V-28V (12/24V DC)
USB Ports 1x USB host compatible
2x device USB
GPIO 4x photo-couple input/4x photo-couple output
Operating system WinCE 5.0
Operating temperatur -30°C to 80°C
Scope of supply - CTFPND-5-A (7" PND)
- Mounting adapter
- Power cable with open lices
- Window suction mounting unit
