MiniPC HAHE-FC Enclosure (for Intel D945GSEJT Half-Height ITX, Heatpipe, 2x RS232) *new*

PRODUCT IS CURRENTLY NOT AVAILABLE !
MiniPC HAHE-FC Enclosure (for Intel D945GSEJT Half-Height ITX, Heatpipe, 2x RS232) *new*

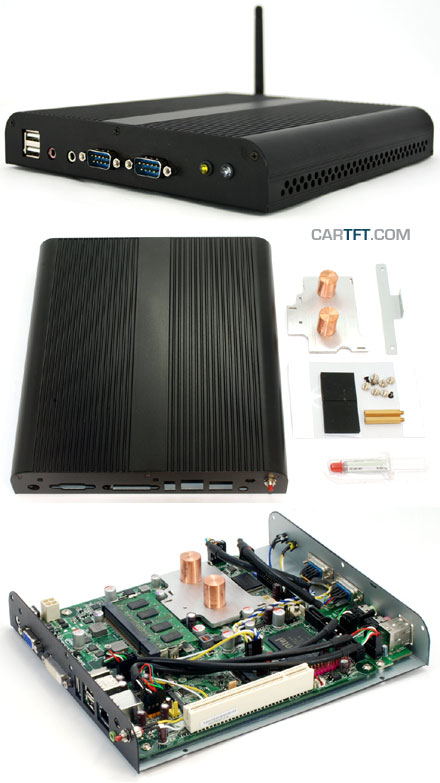

Simple, but efficient : With this enclosure you take full advantage of the small form factor of the Intel D945GSEJT Half-Height Johnstown mainboard. And with its dimensions of only 206x185x32.4 mm it has, with an internal volume of less than 1.4 liters, room for one 2.5" harddrive or SSD drive. The enclosure can be operated fully fanless with the Intel D945GSEJT even under full load in continous operation. CPU/chipset are connected to the enclosure with help of an heatpipe.

On the enclosure rear side there is a small hole where you can eg. install a WLAN antenna.

Technical data :
Drives : 1x 2.5"
Front
[more]

Share


SSD (2.5"):
  • Description
  • Data sheets and downloads
  • Customer ratings
  • Assembling options

Simple, but efficient : With this enclosure you take full advantage of the small form factor of the Intel D945GSEJT Half-Height Johnstown mainboard. And with its dimensions of only 206x185x32.4 mm it has, with an internal volume of less than 1.4 liters, room for one 2.5" harddrive or SSD drive. The enclosure can be operated fully fanless with the Intel D945GSEJT even under full load in continous operation. CPU/chipset are connected to the enclosure with help of an heatpipe.

On the enclosure rear side there is a small hole where you can eg. install a WLAN antenna.

Technical data :
Drives : 1x 2.5"
Front-connectors : 2x USB 2.0, 1x earphone, 1x microphone
Rear-button : Power
Front-LED : Power, HDD
Dimensions : 206x185x32.4 mm


Scope of supply :
- Enclosure HAHE-FC
- Heatpipe
- HDD/SSD fixing bracket
- Heat paste
- screws
