Jetway NC9KDL-2550 (with integrated Atom 2x 1.86Ghz CPU, Cedar Trail) [FANLESS] new

PRODUCT IS CURRENTLY NOT AVAILABLE !

Jetway NC9KDL-2550 (with integrated Atom 2x 1.86Ghz CPU, Cedar Trail) <b>[FANLESS] *new*</b>

3D 360° View

Dual-Core !
Intel Atom !
FANLESS !
Replace NC9KDL-2700 !

- INTEL® Cedar Trail-D Processor D25500 + NM10 Chipset
- Support 2 * DDR3 800/1067MHz Single CH up to 4GB
- Support DirectX 9 Graphics
- Support 2 * Serial ATAII (3Gb/s) Devices
- Integrated Realtek ALC662 HD Audio CODEC with 6-CH
- 1 * 24 bits Single Channel LVDS header
- Supports 2 * Realtek RT8111EVL Gigabit LAN
- Support Watch dog Technology
- Support CPU Smart FAN
- Compliance with ErP standard
- Mini-ITX Form Factor (170mm x 170mm)

CPU	Intel Atom D2700 2x 2.13Ghz
Graphics	Intel GMA 3150
Formfactor	ITX (17x17cm)
RAM	2x SO-DDR-III
Audio	Realtek ALC662
Base	Intel ITX

USB	8x USB 2.0
Firewire	--
IDE/SATA	2x SATA
LAN	2x 10/100/1000
Parallel	2x
Serial	1x

yes	TV-Out
yes	PCI
no	Mini-PCI
no	IDE
no	DVI
yes	800x480 Resolution

yes	Passive-Cooling
no	PCI-Express
no	PCMCIA
yes	SATA
no	CPU changeable
no	Compact Flash

RAM :

CPU	INTEL ® Cedar Trail-D Processor D2550 (1.86GHz)
Chipset	INTEL® NM10 Express Chipset
Memory	2 * SO-DDR3 RAM (up to 4 GB)
Expansion Slots	1 * PCI slot
Storage	2 * Serial ATA2 3Gb/s connectors 1 * Floppy connector
Audio	Realtek ALC662 6-Channel HD Audio
Ethernet LAN	2x Realtek RTL8111EVL Gigabit LAN
USB	Embedded 8 * USB 2.0/1.1
Special Features	- Intel Atom Processor D2700 - Support ACPI S3 - Support CPU Smart Fan - Support Watch Dog Technology

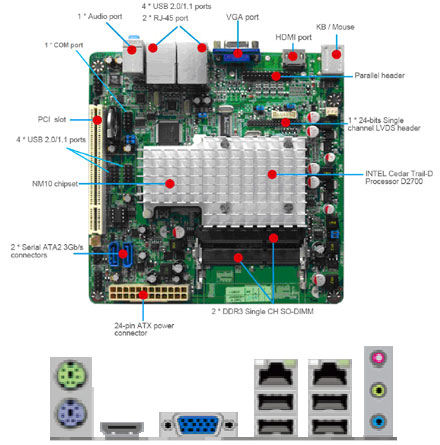

Rear Panel I / O	- 4 * USB 2.0/1.1 ports - 1 * PS/2 Mouse & 1 * Keyboard connector - 2* RJ-45 port - 3 * Audio I/O ports ( Line-in, mic and line-out ) - 1 * VGA port - 1 * HDMI
Internal I / O	- 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports - 3 * NB / Chassis Fan connectors; - 1 * 24-pin ATX Power connector - 1 * LVDS header, 1 * Inverter header - 1 * Parallel - 1 * AUDIO header - 1* RS232 header
BIOS	Award 16MB DIPFlash ROM
Form Factor	Mini ITX Form Factor(17cmx17cm)

Scope of supply	- Jetway NC9KDL-2700 Mini-ITX Mainboard
	- DriverCD
	- Manual
	- 2x SATA cable
	- 1x COM Header cable
	- ATX I/O Shield

Data sheet	Download (PDF)
Data sheet	Print view
Specifications [EN]	Download (PDF)

Please login for creating product ratings.

Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: Average rating, based on 1 ratings

from mregen am 10.03.2012 |

Hi, I got the board. it has a great price/value. However, I was planning to install a 64bit OS. This is not possible yet, according to some forums and ct magasine the BIOS yet disables 64bit support and no BIOS update from Jetway yet for the past few months. I probably return the board and get another one with better BIOS support.
