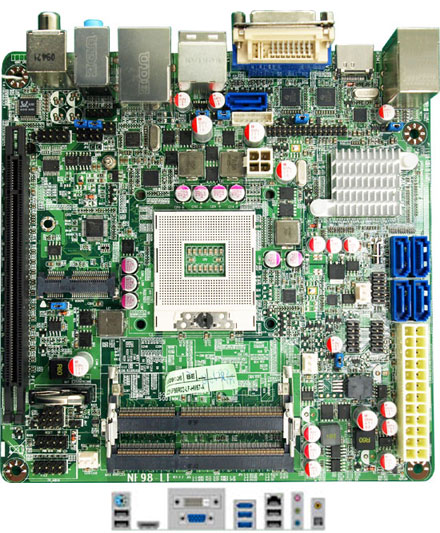

Intel® QM57 Express Chipset
Supports Intel Core™ i3, i5, i7 Mobile Processors
Dual Channel DDR3-800/1066 up to 8GB
Intel 82577LM Gigabit LAN
Intel Active Management Technology ( iAMT 6.0 )
PCI Express x16 2.0 Slot, PCI Express Mini Card Slot
Integrated 24-bit Dual Channel LVDS
5-port SATA 3Gb/s with RAID 0, 1, 5, 10 & JBOD Support
HDMI, DVI-D, and VGA Video Outputs
Built-in Watchdog Timer Technology
Mini-ITX Form Factor (170mm x 170mm)
Includes CPU Heatsink/Fan for <35W Processors

Product Accessories
- COM cable
- Manual
- CD
- 1x SATA cable
- I/O shield
- CPU fan
- Thermal grease

CPU	Intel Core i3, i5, i7 mobile processors Socket G (rPGA988A), Includes CPU Heatsink/fan for <35W processors
Chipset / Video	Intel QM57 Express Chipset Intel HD Graphics ( requires compatible CPU with built-in GPU )
Memory	2 * SODIMMs Sockets for un-buffered dual channel DDR3-800/1066 up to 8 GB
Expansion Slots	1 * PCI Express x16 2.0 (by 16-lane) slot 1 * PCI Express Mini Card slot
Storage	5 * Serial ATA II 3Gb/s connectors
Audio	VIA VT 1705 6-Channel HD Audio
Networking	Intel 82577LM Gigabit Ethernet LAN Intel Active Management Technology support ( iAMT 6.0 )
LVDS	Onboard 24-bit dual channel LVDS connector
USB	Embedded 10 * USB 2.0/1.1
Special Features	Supports ACPI S3, CPU Smart FAN, All solid capacitors Watchdog hardware monitor
Rear I / O	6 * USB 2.0/1.1 ports 1 * PS/2 KB/mouse combo connector 1 * RJ-45 port 1 * HDMI port 1 * VGA port 1 * DVI-D port 1 * eSATA port 1 * Audio port (Line-in, MIC and Line-out) 1 * Coaxial Out & 1 * Optical Out
Internal I / O	2 * USB 2.0/1.1 headers for 4 USB ports 1 * 24-bit dual channel LVDS header 1 * Serial header ( RS232/422/485 ) 1 * GPIO header 1 * Audio header, 1 * Front panel header 1 * 24-pin ATX power connector, 1 * 4-pin 12V ATX power connector
BIOS	AMI EFI 64MB SMT Flash ROM
Form Factor	Mini-ITX Form Factor (170mm x 170mm)
Functional	ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
Compliance	CE, FCC, RoHS, EuP
Temperature	Operating within 0~60 centigrade Storage within -20-85 centigrade
