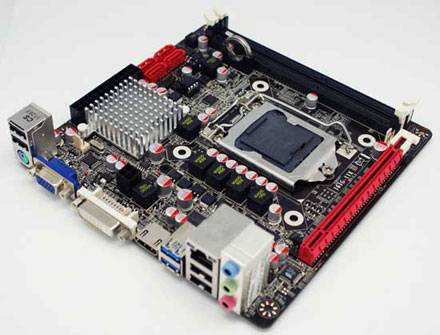

Jetway I61G-ITX (Intel H61)

PRODUCT IS CURRENTLY NOT AVAILABLE !

RAM :

CPU	INTEL® LGA1155 Socket Support 2nd generation Intel Core processor(i3/i5/i7) family Support Intel® Pentium® processor, and Intel® Celeron® processor. Support Intel® Turbo Boost Technology 2.0 3+1+1 Phase CPU Power Support
Chipset	INTEL® H61 Express Chipset
Memory	Dual Channel DDR3 memory technology 2 x DDR3 DIMM slots Support DDR3 1333/1066 un-buffered memory Max. capacity of system memory up to: 8GB
Expansion Slots	1x PCI Express 2.0 x16(By 16) slot
Storage	Embedded INTEL H61 Chipset: 4 x Serial ATA2 3Gb/s connectors
Audio	VIA VT1705 Audio CODEC 5.1 CH HD Audio with Content Protection
Ethernet LAN	RTL8111E Chip PCI-Ex1 Gigabit LAN 10/100/1000 Mb/s Support PXE
USB	INTEL H61 Chipset: 6 x USB 2.0 ports (4 distribute in back panel, 2 distribute in mid-board) 2 x USB 3.0 ports by ASMedia ASM1042 (2 distribute in back panel)
Back Panel I / O	4 x USB 2.0/1.1 ports 2 x USB 3.0 ports 1 x PS/2 Keyboard / Mouse 1 x VGA Port 1 x DVI-D Port 1 x HDMI Port 1 x RJ-45 Port 3 x Audio jacks (Line In/Line Out/Microphone)
Internal I / O	1 x USB 2.0/1.1 header for 2 USB 2.0/1.1 ports CPU / Chassis Fan connectors 1 x 4-pin ATX 12V Power connector 1 x 24-pin ATX Power connector 1 x HDMI_SPDIF header 1 x Front panel audio header
BIOS	32 MB DIP Flash ROM
Form Factor	ITX form Factor:170x170 mm
