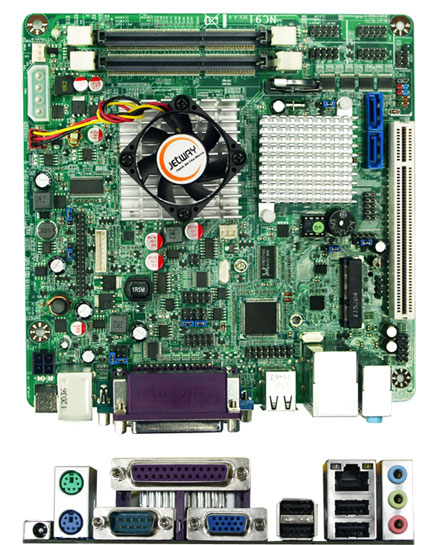

Jetway NC9I-525-OC (Intel Pine Trail-D)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NC9I-525-OC (Intel Pine Trail-D)

  • Intel Atom D525 + NM10 Chipset
  • Support INTEL® Atom Dual-Core D525 CPU
  • Support 2 * 3Gb/s SATAⅡ
  • Support 2 * DDR3 800MHz Single CH SO-DIMM up to 4GB
  • Supports 1 * Gigabit LAN
  • Support 6 * COM ports (COM2 for RS232/422/485)
  • Integrated Realtek ALC662 HD Audio CODEC with 6-CH
  • Support Watchdog Technology
  • Support CPU Smart FAN
  • Mini-ITX Form Factor(170mm x 170mm)


Share

RAM :
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
CPU INTEL ® Atom Dual-Core Processor D525 (45nm,1.80GHz,1024MB L2 Cache)
Chipset INTEL® Atom D525 + NM10
Memory 2 * DDR3 800MHz Single CH SO-DIMM up to 4GB
Expansion Slots 1 * PCI slot, 1 * Mini PCI-E socket
Storage 2 * Serial ATA2 3Gb/s connectors
Audio Realtek ALC662 6-Channel HD Audio CODEC
Ethernet LAN 1 * Realtek RTL8111EVL Gigabit LAN
LVDS Onboard 24-bit single channel LVDS connector
USB Embedded 7 * USB 2.0/1.1
Rear Panel I/O 4 * USB 2.0/1.1 ports 1 * PS/2 Mouse & Keyboard connector 1 * RJ-45 port 3 * Audio I/O ports ( Line-in, Mic and Line-out ) 1 * VGA port 1 * COM port 1 * Parallel port 1 * 12V DC-in jack
Internal I/O 3 USB 2.0 ports 3 * NB / Chassis Fan connectors; 1 * 24-pin ATX Power connector 1 * LVDS header/ 1* CD IN /1 * GPIO 1 * AUDIO header 5 * COM headers (COM2 for RS232/RS422/RS485)
BIOS AMI 8MB DIP Flash ROM
Functional ATM, KIOSK, POS Machine, Digital Signage, General Application
Packing Color Box Dimension:200(W) x 200(D) x 70(H)mm
Certificate CE, FCC, RoHS
Temperature Operating within 0~40 centigrade Storage within -20-85 centigrade
Form Factor Mini ITX Form Factor(17cmx17cm)
