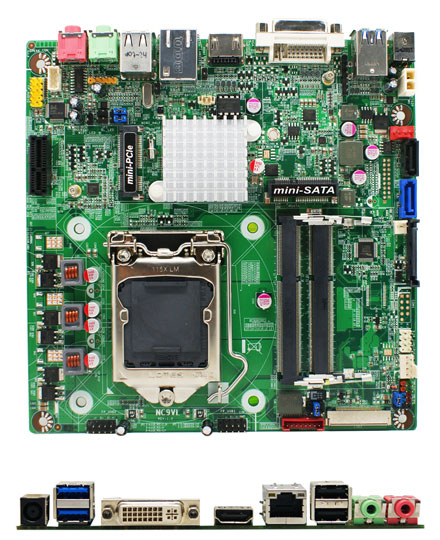

Jetway JNC9VL-H81 (Intel H81)

Intel® H81 Chipset
Supports Intel LGA 1150 Socket 4th Generation Core™ i3, i5, i7 & Pentium Processors
2 * Dual Channel SO-DIMM DDR3-1333/1600 up to 16GB
1*HDMI output
Support CPU Smart FAN
Supports 1 * Gigabit LAN
Supports ACPI S3 Function
Support Watch dog Technology
Thin Mini ITX form factor

219.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.

RAM :

SSD (mSATA):

Build/Install:

CPU	INTEL® LGA 1150 Socket 4th generation Core i7/i5/i3/Pentium Processor
Chipset	INTEL® H81 Chipset
Memory	2 * SO-DIMM Sockets Dual Channel DDR3 1600/1333 SDRAM up to 16 GB
Expansion Slots	1 PCIe x 1 1 half size Mini PCI-E socket
Storage	1 * Serial ATA2 3Gb/s & 1 * Serial ATA3 6Gb/s connectors 1 * full size mSATA socket (only mSATA)
Audio	Realtek ALC662 6-Channel HD Audio CODEC
Ethernet LAN	Intel i217LM Gigabit Ethernet LAN *1
USB	6* USB 2.0/1.1 & 2 * USB3.0
Special Features	Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I / O	2 * USB 2.0/1.1 & 2 * USB 3.0 ports 1 * HDMI 1 * DVI-I port 1 * 19V DC-in jack 1 * RJ-45 port 1 * MIC-in & 1 * Line-out jacks
Internal I / O	2 * USB 2.0/1.1 headers CPU /System Fan connectors; 1 * PS/2 header 1 * 24-bits Dual CH LVDS & 1 * Inverter connector 1 * CIR header 1 * AUDIO header 1 * Speaker header 1 * DMIC header 1 * Front panel header 1 * FPD Brightness connector 1 * 2-pin ATX Power header 1 * 2-pin open case header
BIOS	AMI 64Mb DIP Flash ROM
Form Factor	Thin Mini ITX Form Factor (170mm x 170mm)
Functional	ATM, POS, AIO, Panel PC, Digital Signage
Certificate	CE, FCC, RoHS
Temperature	Operating within 0~60 centigrade Storage within -20-85 centigrade
