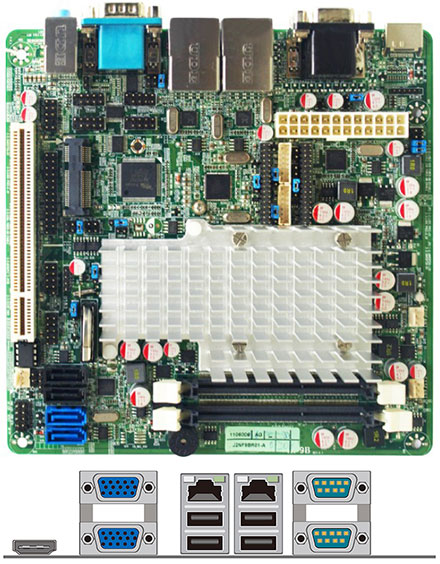

Jetway NF9B-2550 (Intel Cedar Trail-D)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NF9B-2550 (Intel Cedar Trail-D)

  • Intel® Cedar Trail-D Processor D2550 + NM10 Chipset
  • Support 2 * DDR3 1066MHz Single CH up to 4GB
  • Support DirectX 10 Graphics up to 640MHz
  • Support 2 * Serial ATAII (3Gb/s) & 2 * Serial ATAIII (6Gb/s)
  • Realtek ALC662 6-CH HD Audio CODEC with 6-CH
  • 1 * 24 bits Single Channel LVDS headers
  • Support 2 CRT Display
  • Supports 2 * Realtek RT8111EVL Gigabit LAN
  • Support Watch dog Technology
  • Support CPU Smart FAN
  • Compliance with ErP standard
  • Mini-ITX Form Factor (170mm x 170mm)


Share

RAM :
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
CPU Intel® Cedar Trail-D Processor D2550 (1.86GHz) CPU
Chipset Intel®NM10 Express chipset
Memory 2 * DDR3 1066MHz Single CH SO-DIMM up to 4GB
Expansion Slots 1 * PCI slot 1 * Mini PCIe
Storage 2 * Serial ATAII 3Gb/s + 2 * Serial ATAIII 6Gb/s connectors
Audio Realtek ALC662 6-CH HD Audio CODEC
Ethernet LAN 2 * RTL8111EVL PCI-E Gigabit LAN
LVDS Onboard 24-bits single channel & 24-bits dual channel connectors
USB Embedded 7 * USB 2.0/1.1
Special Features Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I / O 4 * USB 2.0/1.1 ports 2 * RJ-45 port 2 * COM port 2 * VGA port 1 * HDMI Port 1 * Audio port (Line-in, MIC and Line-out)
Internal I / O 2 * USB 2.0/1.1 headers for 3 USB 2.0 ports 1 * Parallel header 1 * PS2/KB header CPU /NB / Chassis Fan connectors; 1 * GPIO header 4 * COM headers(COM6 for RS232/422/485) 1 * chassis intrusion header
BIOS AMI 16MB DIP Flash ROM
Form Factor Mini ITX Form Factor(170mm x 170mm)
Functional ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation, Kiosk
Certificate CE, FCC, RoHS
Temperature Operating within 0~60 centigrade Storage within -20-85 centigrade
