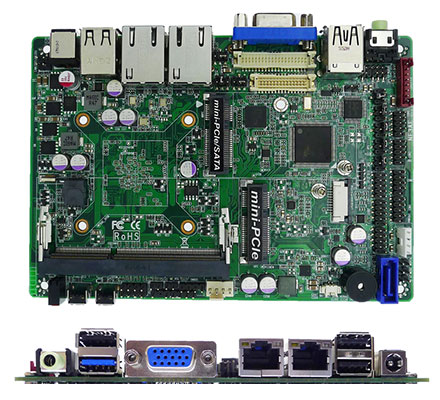

Jetway NF3AE-2930 (Intel BayTrail)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NF3AE-2930 (Intel BayTrail)

  • Intel® Celeron Quad Core N2930 SoC Processor
  • 1* VGA/4* COM/1* USB3.0, 7* USB2.0/2* GbE/2* Mini PCIe (full & half size)/1* DDR3L/1* SATAII/LVDS/eDP/1* PS/2/12V DC-in
  • Support 1 * DDR3L 1333MHz Single Channel SO‐DIMM up to 8GB
  • Support 1 * Serial ATAII (3Gb/s) Device
  • 1 * 24‐bits Dual Channel LVDS header and 1 * 4‐lane eDP header
  • Support VGA Output
  • Supports 2 * Realtek RT8111G Gigabit LAN
  • 3.5” SBC Form Factor (148mm * 102mm)


Share


SSD (mSATA):
  • Specifications
  • Data sheets and downloads
  • Customer ratings
Form Factor
Dimensions – 3.5” SBC (148 * 102mm)
Processor System
CPU – Intel® Bay Trail series processor (default N2930 Celeron Processor)
Core Number – (by CPU)
Max Speed – (by CPU)
L2 Cache – (by CPU)
Chipset – SoC
BIOS – AMI 64Mb Flash ROM
Expansion Slot
PCI – 0
Mini-PCIe – 1 (full size, shared with mSATA) & 1 (half size)
mSATA – 1 (full size, shared with mPCIe)
Memory
Technology – Single Channel DDR3L 1333MHz SO‐DIMM
Max. – 8GB
Socket – 1 * SO‐DIMM
Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 1
LVDS – 1 (24-bits Dual channel connector)
eDP 1.3 – 1
HDMI 1.4 – 0
DVI‐D – 0
MultiDisplay – Yes (Dual Displays)
Ethernet
Ethernet – 10/100/1000 Mbps
Controller – GbE LAN: Realtek RTL8111G
Connector – 2 * RJ 45
Audio
CODEC – HD Audio : Realtek ALC662
Channel – 2 Channel
SATA
Max Data Transfer Rate – 1 * SATAII (3.0Gb/s)
Rear I/O
VGA – 1
DVI‐D – 0
Display Port ‐ 0
Ethernet – 2
USB – 4 (1 * USB 3.0 & 3 * USB 1.1/2.0)
Audio – 1 (Line‐out)
Serial – 0
eSATA – 0
PS/2 – 0
DC‐input – 1
Internal Connector
USB – 4 ( 4 x USB 2.0 via 10pin header)
PS/2 – 1
LVDS / inverter – 1
eDP – 1
Serial – 4 (3 * RS232 , 1 * RS232/422/485 with 5V/12V selectable header)
SATA – 1 * SATAII (3.0Gb/s)
mPCIe – 1 (full size, shared with mSATA), 1 (half size)
mSATA – 1 (shared with mPCIe)
GPIO – 1 (8 bit)
Chassis intrusion – 1 (via 2pin header)
Audio Header – 1 (Line‐out & MIC)
SMBUS/ I2C – 1
AT mode – 1
Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR – +9~24V DC‐in
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications – CE, FCC, RoHS, REACH
Environment
Temperature – Operating: 0°C ~ 60°C
– Storage: ‐20°C ~ 85°C
