Shop for mobile PC- and GPS-solutions

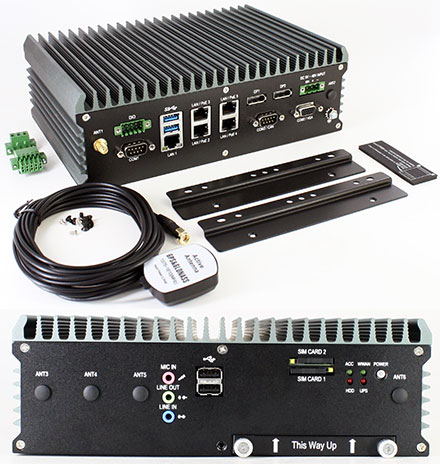

FleetPC-5-B Car-PC (AMD RX-216GD 2x3Ghz, 4GB RAM, Autostart-Controller, 9-48V Automotive Netzteil, GPS) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
FleetPC-5-B Car-PC (AMD RX-216GD 2x3Ghz, 4GB RAM, Autostart-Controller, 9-48V Automotive Netzteil, GPS) [<b>FANLESS</b>]
3D 360° View
  • Fanless !
  • Auto Power On/Off !
  • 5x LAN ! POE optional !
  • 2x RS232 !

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

The system has long-term availability. It is available until at least 2025.

For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash

The PC is completely fanless and is equipped with an AMD RX-216GD 2x3GHz CPU and 4GB RAM.

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots.
We recommend these modules:
- HSPA / UMTS / EDGE
[more]

Share

RAM :

SSD (2.5"):

OS:

Build/Install:
  • Description
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Technical notes
  • Assembling options

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

The system has long-term availability. It is available until at least 2025.

For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash

The PC is completely fanless and is equipped with an AMD RX-216GD 2x3GHz CPU and 4GB RAM.

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots.
We recommend these modules:
- HSPA / UMTS / EDGE / LTE 4G Mini-PCIe Modem (Huawei ME909s-120) -- with pigtail/antenna --
- Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo ZQ802XRACB] -- with pigtails/antennas --

Features :
- Fanless
- AMD RX-216GD Dual Core CPU 1.6GHz up to 3.0 GHz
- AMD Radeon Graphics
- GPS (VDB-810)
- 2x RS232
- 5x Gigabit LAN (2x Intel i210-AT + 3x Switched)
- 2x dP + 1x DSUB-15 VGA
- Watchdog
- Prepared for GPS, WLAN, GSM/GPRS with ext. antennas
- 4x DI / 4x DO with Relay 12V / 100mA
- Vibration/shock tested
