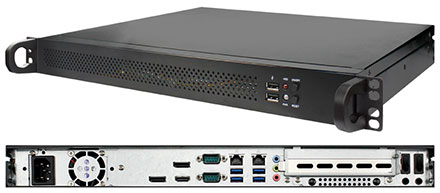

Jetway HBJC150F697-Q170-B (Intel Q170)

Jetway HBJC150F697-Q170-B (Intel Q170)

  • Intel® LGA1151 Socket Core i3, i5, i7 & Pentium Processors
  • Support DDR4-2133Mhz, 2* SO-DIMM, up to 32GB
  • 1* HDMI, 2* DP, 2* RJ45, 4* USB3.0, 2* COM
  • M/B Form Factor : Mini ITX (170x170mm)
  • 1U 200W FLEX Power


Share

659.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
RAM :
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
MB Model – JNF697-Q170 / Mini ITX
Part No. – HBJC150F697-Q170-B
CPU/Chipset – Intel® LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
– Intel® Q170 Express Chipset
Memory – 2 * DDR4-2133 up to 32GB
Specs Devices – 1* 3.5” SATA Device or 2 * 2.5” SATA Device
Rear Panel I/O – 1 * Power SW, 1 * Reset SW
– 1 * Power LED, 1 * HDD R/W LED
– 2 * Intel Giga LAN Port
– 1 * HDMI, 2 * DP
– 2 * COM
– 4 * USB3.0
– 1 * MIC, 1 * Line 1 * Line out
Front Panel I/O – 1 * Power SW, 1 * Reset SW
– 1 * Power LED, 1 * HDD R/W LED
– 2 * USB2.0
PSU – 1U-200W / Support PFC / 150 (L) *81.5 (W) *40.5 (H) mm (FLEX)
FAN – 4020 FAN * 3 / 7000 rpm / DC-12V-0.1A / 8 CFM
Storage – 3.5” HDD * 1 or 2.5” HDD * 2 (Support SATA 3 )
Accessory – 1 * Power cord
– 1 * Quick Installation Guide
– 1 * CD
– 1 * User Manual
– 1 * Screw Package
– 1 * CPU Cooler FAN
Dimensions – 430 (W) x 250 (D) x 44 (H) mm
Packing – Net Weight: 3.5KG
– Gross Weight: 4.5KG
– Color Box dimension: 530 (W) * 352 (D) * 142 (H) mm
Safety – CE, FCC, RoHS, REACH
Warranty – 2 Year limited warranty
