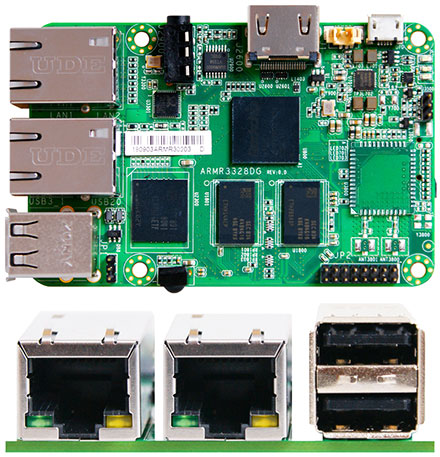

Jetway JR3328-DG2NL (ARM Cortex A53, Android 7.1)

Jetway JR3328-DG2NL (ARM Cortex A53, Android 7.1)

  • Rockchip® ARM Cortex A53 RK3328 Quad-core 1.5GHz
  • Onboard 1600 /2GB DDR3L DRAM (Max. 4GB)
  • 8G Flash ROM (Max 32GB)
  • Support 1* GbE and 1* 10/100M LAN
  • Support 10bit GPIO
  • 1* HDMI (3840 x 2160@60Hz)
  • 2* USB2.0, 1* OTG, 1* HDMI, 1* Line-out
  • 1.8” Form Factor (85*56mm)


Share

189.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
  • Specifications
  • Data sheets and downloads
  • Customer ratings
 Model
Model – JR3328-DG2NL
Part Number – JR3328-DG2NL
 Form Factor
Dimensions – 1.8″ SBC (85* 56mm)
 Processor System
Processor/CPU -Rockchip® ARM Cortex A53 RK3328 Quad-core 1.5GHz SoC Processor
GPU – Mali-450MP2, Support OpenGL ES1.1/2.0
 Memory
DRAM – 2GB DDR3L 1600MHz on-board (Max. 4GB)
Flash ROM – 8GB (Max. 32GB)
 Ethernet
Ethernet – 1 * 10/100 Mbps internal FE PHY
– 1 * Realtek RTL8211F-CG / 10/100/1000Mbps
Wifi – Optional
3G/4G/LTE – N/A
 Graphics
HDMI – 1 * HDMI (3840 x 2160@60Hz)
Multi Display – Single display
 Expansion Slot
Micro SD Socket – 1 (Max. 64G)
 Special Features
IR Support – Yes
OS Support – Android 7.1
Watchdog Timer – 0~255 Sec./Min. programmable
Application – Digital signage, Face recognition system
 I/O Port
External I/O – 1* HDMI
– 2* RJ45
– 2* USB2.0
– 1* OTG
– 1* AUDIO
Internal I/O – 10bit GPIO
 Power Requirements
Input PWR 5V DC-in
– AT : Directly PWR on as Power input ready
– ATX : Press Button to PWR on after Power input ready
 Certifications
Certifications – RoHS, CE, FCC, CE-LVD
 Environment
Temperature – Operating: -10°C ~ 60°C with 0.7 m/s air flow
– Storage: -20°C ~ 70°C
 Warranty
Warranty – 1 Year Limited Warranty
Life Cycle – Till 2022 Q1
