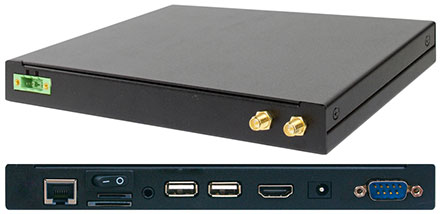

Jetway HBJC921R3288-2N (ARM Cortex A17)

Jetway HBJC921R3288-2N (ARM Cortex A17)

  • Rockchip® ARM Cortex A17 RK3288 Quad-core 1.8GHz
  • Onboard 1333 /2GB DDR3L DRAM Max. 4GB
  • Onboard 8G Flash ROM Max 32GB
  • Support 1* Realtek® RTL8211E-VB Gigabit LAN, 1* Realtek® RTL8723BS 802.11 b/g/n
  • Support 1* Micro SD Socket (Max 64G)
  • 1* USB2.0, 1* OTG, 1* RS485, 1* HDMI, 1* Total switch control
  • 12V DC-in


Share

249.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
MB Model – JARMB3288W-2N (3.5” SBC)
Part No – HBJC921R3288-2N
CPU/Chipset – Rockchip® ARM Cortex A17 RK3288 1.8GHz Quad core
– Rockchip® RK808-B
Memory – 2GB/1333MHz DDR3L (Max 4GB)
Storage – 8GB Flash (Max 32GB)
Network – 1 * REALTEK RTL8211E-VB Gigabit LAN
– On board 802.11 a/b/g/n/ac, 2.4G
– On board BT-V4.0 BLE
Rear Panel I/O – 1 * RJ45
– 1 * HDMI
– 1 * Audio Jack
– 1 * USB2.0
– 1 * OTG (Option USB2.0)
– 1 * RS485
– 1 * Micro SD Socket
– 1 * Power button
– 1 * SIM Card Socket
– 12V DC-Jack
Front Panel I/O – 2 * Antenna hole
– 1 * Total switch control
Power Source – DC 12V-5.0A
– AC 90~240V input
Compliance – RoHS, CE, FCC, CE-LVD
Temperature – Operating Temperature: -10 ~ 60° C
– Storage Temperature: -20 ~ 65° C
Dimensions – 190 (W) x 115 (D) x 22 (H) mm
OS Support – Android 5.1, Linux Debian 9.0
Warranty – 1 Year limited warranty
Life Cycle – Till 2023 Q1
