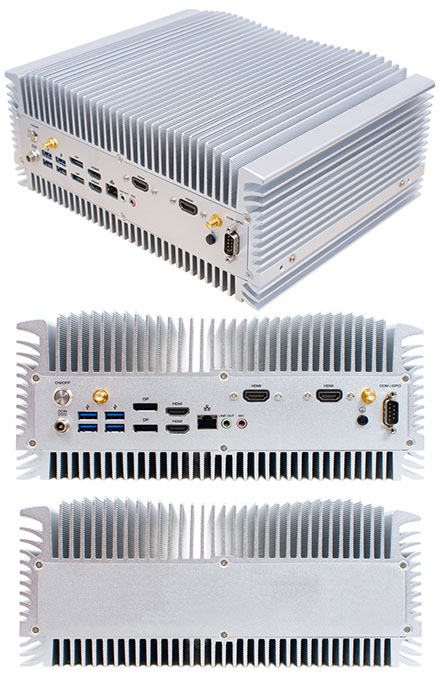

Jetway HBJC909C9A (Intel Coffee Lake, H310, LGA1151) [4x HDMI, 2x DP, FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway HBJC909C9A (Intel Coffee Lake, H310, LGA1151) [4x HDMI, 2x DP, <b>FANLESS</b>]
  • Intel Coffee Lake !
  • Barebone !
  • 12-36V DC-in !
  • 4x HDMI / 2x DP !

  • Intel® LGA1151 Socket Core I3,I5,I7 Pentium Processor (Max 35W)
  • Intel® Coffee Lake-S H310 Chip
  • Support Dual Channel DDR4 2133MHz up to 32GB
  • Support MXM Type A/B VGA Card(Type A or B, Max 75W)
  • 1* M.2 E key Support CNVi, 1* M.2 B key Support 3G/4G Module
  • 2* RS232 (COM1/2 Support 5V/12V TTL), 4* USB3.1, 4* USB2.0, 1* GbE, 4* HDMI, 2* DP, 1* eDP (By MXM)
  • 12~36V DC-in


Share

RAM :

SSD (M.2 NVME):

OS:

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
MB Model – JNC9AMXM-H310
Part No. – HBJC909C9A
BIOS – AMI 128MB SMT Flash ROM
CPU/Chipset – Intel® LGA1151 Socket Core I3,I5,I7 Pentium Processor (Max 35W)
– Intel® Coffee Lake-S H310 Chip
Memory – 2* DDR42133MHz up to 32GB
Network – 1* Intel® I219LM GbE
Storage – 1* 2.5” SATA 6Gb/s internal drive bay (only support 2.5″ HDD with a hight
≤ 10mm)
– 1* M.2 M Key Socket (2280, Support NVMe)
Rear Panel I/O – 4* USB3.1
– 2* DP (Up: DP By CPU, Bottom: DP By MXM VGA Card)
– 4* HDMI (2* EXT HDMI By MXM, INT HDMI2 BY MXM, INT HDMI1 By CPU)
– 1* RJ45
– 1* RS232
– 1* Line-out, MIC
– 1* DC Jack
– 1* Power Button
Internal Connector – 1* M.2 B Key Socket for 3G/4G Module
– 1* M.2 E Key Socket for CNVi or PCI-E/USB WIFI/BT
Power Source – DC 12~36V input
Compliance – CE, FCC, RoHS, ErP Ready (Option)
Temperature – Operating Temperature: -10 ~ 50° C
– Storage Temperature: -20 ~ 60° C
Dimensions – 279.8 (W) x 224.0 (D) x 115.9 (H) mm
OS Support – Windows 10, Linux
