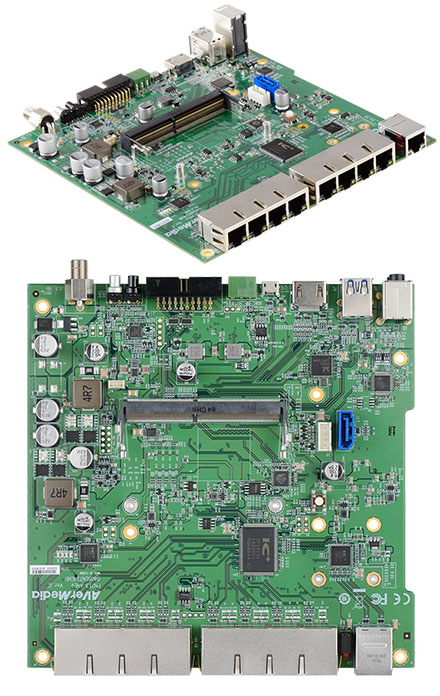

AVenMedia EN713-AAE9-0000 CarrierBoard (for NVIDIA Jetson Nano/Xavier NX)

PRODUCT IS CURRENTLY NOT AVAILABLE !
AVenMedia EN713-AAE9-0000 CarrierBoard (for NVIDIA Jetson Nano/Xavier NX)
  • NVIDIA® Jetson Nano Support !
  • Xavier NX Modul !
  • 4kp60 Output !

  • Fully support NVIDIA® Jetson Nano™ (version B01)/Xavier NX module
  • 8x 10/100 MbE with PoE
  • 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI output
  • 20 pins with 1x UART, 2x I2C, 5x GPIO
  • 1x RS-485 (3 pins) and 1x Micro-B USB 2.0 for recovery only
  • 1x mPCIe (USB 2.0 for LTE module)
  • Operating temperature: 0°C~70°C
[more]

Share

  • Description
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • AVerMedia YouTube

  • Fully support NVIDIA® Jetson Nano™ (version B01)/Xavier NX module
  • 8x 10/100 MbE with PoE
  • 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI output
  • 20 pins with 1x UART, 2x I2C, 5x GPIO
  • 1x RS-485 (3 pins) and 1x Micro-B USB 2.0 for recovery only
  • 1x mPCIe (USB 2.0 for LTE module)
  • Operating temperature: 0°C~70°C


AVerMedia’s AVerAI EN713-AAE9-0000 carrier board of NVIDIA® Jetson Nano™ is designed as an A.I. NVR (Network Video Recorder) for intelligent surveillance system.
This product provides 8-channel PoE (PSE) ports for IP cameras, a SATA port for storage, 1x mPCIe , 2x USB 3.0 , 1x microphone input, 1x speaker output, 1x RS-485 and 20-pin GPIO expansion header (1x UART, 1x I2C, 5x GPIO), 1x HDMI 2.0 out.
Benefiting from the Jetson Nano™ and Astro SDK, it can simultaneously decode and analyze 8-channel 1080p30 IP camera video inputs.
AVerAI EN713-AAE9-0000 carrier board is designed as an application ready platform for multiple applications to improve the performance, flexibility and time to market. With EN713-AAE9-0000, software developers not only can deploy their deep learning software on this system but also can market their software on this carrier board as a complete solution. This can greatly help simplify the efforts and processes of the system integration in launching their A.I. solution into the market faster.
