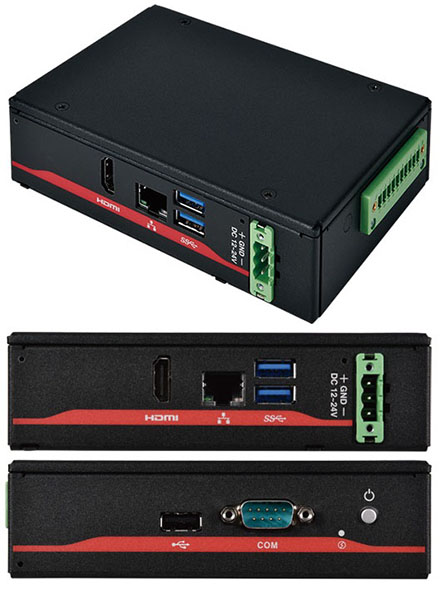

Mitac ME1-1-8MQ-4G32G (NXP i.MX8M Processor, 1x LAN, HDMI) [FANLESS]

Mitac ME1-1-8MQ-4G32G  (NXP i.MX8M Processor, 1x LAN, HDMI) <b>[FANLESS]</b>
  • i.MX8M Processor !
  • Fanless !
  • ME1-118T !

  • NXP® i.MX8M Dual Core & Quad Core Processor
  • 4GB LPDDR4 Memory onboard (1GB / 2GB Optional)
  • 32GB eMMCStorage onboard (8GB / 16GB Optional)
  • Support up to x1 Giga LAN
  • Support up to x1 HDMI (4K)
  • Support x1 Mini PCIe expansion slot
  • 2 x USB 3.0, 1 x USB 2.0, 1 x COM port (x RS232/422/485), 4in-4out GPIO
  • 12~24V DC input


Share

459.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
CPUNXP® i.MX8M Family - 8M Quad (4 x Cortex-A53 @ 1.3GHz) - 8M Dual (2 x Cortex-A53 @ 1.3GHz)
CHIPSETi.MX8M SoC Integrated
SYSTEM MEMORYLPDDR4 Onboard Memory with Options: 1GB (1200MHz), 2GB (1600MHz), 4GB (1600MHz)
GRAPHICSI.MX8 Integrated
STORAGE1 x Micro SD card slot (Up to 256GB) / Onboard eMMC with Options for 8GB / 16GB / 32GB
ETHERNET1 x Realtek® RTL8211FD Giga LAN
AUDIORealtek® ALC5660
SIDE I/O1 x Micro SD/SIM card slot / 1 x GPIO 10-pin (4in/4out/5V/GND, Terminal Block)
EXPANSION SLOTMini PCIe Full / Half size (PCIe / USB)
INDICATORPower Button / Power LED
FRONT I/O1 x USB 2.0
/ 1 x RS232 / 422 / 485
REAR I/O1 x HDMI 2.0
/ 1 x RJ-45
/ 2 x USB 3.2 Gen1
/ 1 x 3-pin Terminal Block Power Input
POWER ADAPTERDC12V / 3A / 36W adapter
OPERATING TEMPERATURE0 ~ 55°C (32 ~131°F)
STORAGE TEMPERATURE-20 ~ 70°C (-4 ~158°F)
OPERATING HUMIDITY10% ~ 90% R/H (Non-condensing)
STORAGE HUMIDITY10% ~ 95% @85°C non-condensing
CERTIFICATIONCE / FCC Class B
ANTENNA2 x SMA Antenna (Optional for WiFi / LTE function)
THERMAL DESIGNFanless & Ventless
MOUNTINGWallmount / VESA Mount (75 x 75mm) 2-in-1 Bracket
DIMENSIONS (W X D X H)140 x 100 x 38.75mm
MATERIALEnclosure: Sheet Metal
OS SUPPORT Android 9 Pie (Kernel version 4.14.98) BSP Support / (Remark: Android is suggested for 4G memory MB SKU) / Yocto Gatesgarth 3.2 is preinstalled (BSP Support)
PACKAGE1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets
/ 1 x 10P terminal blcok male plug
