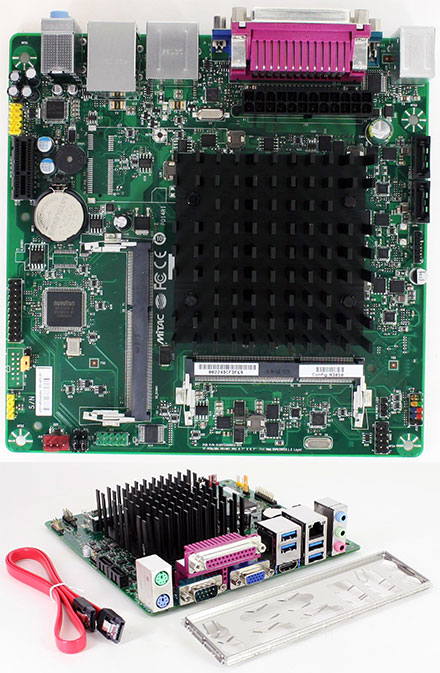

Mitac PD14RI-N3160-OP (Intel D2500HN2) (Intel Braswell Celeron N3160 4x 2.24Ghz CPU) [FANLESS]

Mitac PD14RI-N3160-OP (Intel D2500HN2) (Intel Braswell Celeron N3160 4x 2.24Ghz CPU) [<b>FANLESS</b>]

3D 360° View

No Mini-PCI-Express !
4x 2.24Ghz !
4x USB3.0 !
HDMI + VGA !

This board is produced by MITAC, the OEM producer of Intel D2500HN. This board is based on Intel D2500HN, but is equipped with the moderm Intel Braswell plattform and available until at least end of 2024.

Support Intel Braswell Dual core/Quad core processor
Intel HD graphics and DriectX 12 support
Dual channel DDR3L with two connectors for MAX. 8GB memory
Integrated Six-channel High Definition audio
Features 2 SATA 6Gb/s
Four USB3.0 ports
One PCIeX1 connector for the future Add-in card
One PCI Express Mini Card connector for expansion card like Wifi
Dual Display capability with VGA and HD-Out

[more]

109.95 EUR
incl. 19% VAT, plus shipping
In Stock (181 pcs)

Support Intel Braswell Dual core/Quad core processor
Intel HD graphics and DriectX 12 support
Dual channel DDR3L with two connectors for MAX. 8GB memory
Integrated Six-channel High Definition audio
Features 2 SATA 6Gb/s
Four USB3.0 ports
One PCIeX1 connector for the future Add-in card
One PCI Express Mini Card connector for expansion card like Wifi
Dual Display capability with VGA and HD-Out

Name	Mitac PD14RI (Intel D2500HN2)
Form Factor	Mini-ITX Mainboard
CPU	Intel® Celeron® Processor N3160 (2M Cache, up to 2.24 GHz)
Chipset	Intel Braswell
Graphics	VGA + HDMI
Memory	2x SO-DDR3L Low Voltage, 8GB max, Dual channel
Power	24 Pin ATX
LAN	1x Realtek RTL8111G 10/100/1000 MBit
Connectors (rear)	- 4x USB 3.0 - 1x LAN RJ-45 - 3x Audio - 1x PS/2 - 1x LPT - 1x RS232 - 1x VGA
Audio	RealTek ALC662 5.1 (6-channel) High Definition Audio
Connectors (internal)	- 2x SATA (6GB/s) - 1x USB 2.0 - 1x RS232 - Front Audio, S/PDIF - 1x PCIe X1
Included	- Mitac PD14RI (D2500HN2) Mainboard (with 2x 2.16Ghz Braswell Celeron CPU) - I/O ATX rear plate - 1x SATA cable

Data sheet	Download (PDF)
Data sheet	Print view
Mitac Catalogue	Download (PDF)
