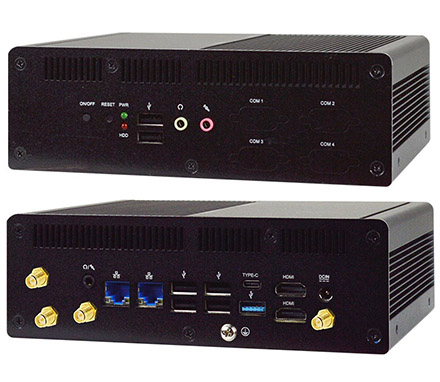

Jetway BFDADN1-N97-N BoxPC (Intel N97 Processor, TDP 12W, 2x LAN, FANLESS)

Jetway BFDADN1-N97-N BoxPC (Intel N97 Processor, TDP 12W, 2x LAN, <b>FANLESS</b>)
  • Intel® N97 (TDP 12W) !
  • 2x LAN !

  • 1* DDR5 4800MHz SODIMM Slot, up to 32GB
  • 2* HDMI 2.0b, 1* Type C DP1.4a
  • 2* 2.5GbE
  • 1* RS485/422/232, 3* RS232
  • 1* USB 3.2 Gen2, 6* USB2.0, 1* USB3.2 Type C
  • 1* M.2 2280 M-key, 1* M.2 2230 E-key, 1* M.2 3042 B-key
  • MB support Wide DC Input 12-28V
  • Support 64GB eMMC & TPM2.0 (Optional)


Share

509.00 EUR
incl. 19% VAT, plus shipping
Available in 4 weeks
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
SYSTEM
CPU Intel® Processor N97 (TDP 12W)
CHIPSET —
SYSTEM MEMORY 1* DDR5 4800MHz SODIMM up to 32GB
DISPLAY INTERFACE 2* HDMI 2.0b (Max Resolution: 4096* 2160@60Hz)
1* DisplayPort for DP1.4a from external USB Type C (Max Resolution : 4096* 2304@60Hz)
STORAGE DEVICE 1* 2.5” SATA-III Drive Bay internal drive bay (Max. Height 9.5 mm)
1* M.2 2280 M-key (PCIe Gen.3 x2 interface) support NVMe
64GB eMMC 5.1 onboard (Optional)
ETHERNET 2* Intel® I225-V, 2.5GbE
Front I/O Power button
Reset button
Power LED
HDD LED
2* USB2.0
1* Line-out
1* Mic
1* DB-9 for RS-232/422/485
3* DB-9 for RS-232
Rear I/O 4* SMA Antenna Hole
1* Combo Audio (Mic-in, Line-out)
2* RJ45
4* USB2.0
1* USB3.2 Gen2 Type-C support DP1.4a display output
1* USB3.2 Gen2
Ground screw
2* HDMI
DC jack
EXPANSION 1* M.2 2230 E-Key for WiFi module
1* M.2 3042/3052 B-Key for 4G/5G module
INDICATOR 1* Power LED
1* HDD LED
OS SUPPORT Windows® 10
Windows® 11
Linux
POWER SUPPLY
POWER REQUIREMENT MB: DC Input 12~28V
Adapter: AC100~240V / DC12V 5A 60W
MECHANICAL
MOUNTING Desktop, Wallmount, Din Rail
DIMENSIONS (W x H x D) 193(W) x 142.4(D) x 62(H) mm (7.6″ x 5.6″ x 2.44″)
GROSS WEIGHT 3.5 kg (7.7 lb)
NET WEIGHT 2.2 kg (4.8 lb)
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE -20°C ~ 60°C (-4°F ~140°F)
(Under the condition of using M.2 interface SSD)
0°C ~ 50°C (32°F ~122°F)
(Under the condition of using 2.5” SATA HDD)
STORAGE TEMPERATURE -40°C ~ 85°C (-40°F ~ 185°F)
OPERATING HUMIDITY 10 ~ 95% @ 40°C, non-condensing
ANTI-VIBRATION —
ANTI-SHOCK —
CERTIFICATION CE/FCC Class A, LVD
