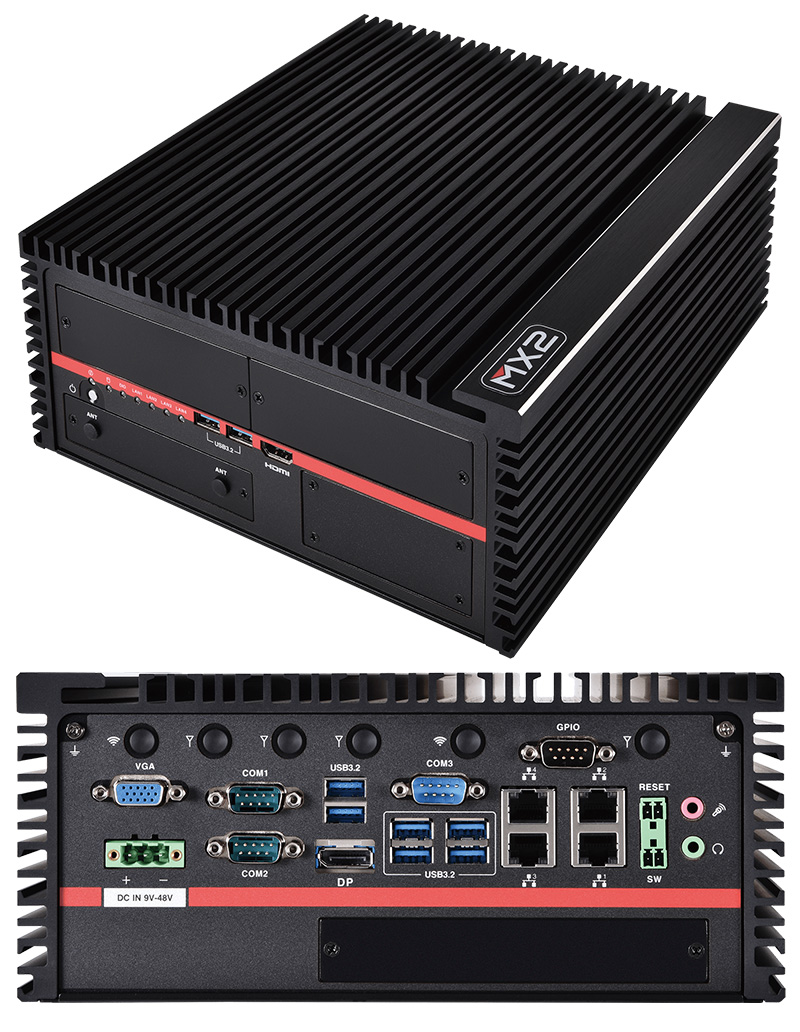

Mitac MX2-10ADP-D-FL-DX8 (Intel Raptor Lake-S, 12/13/14th Gen Intel Core-i, 4x LAN, 3x RS232, Hailo-8) [FANLESS]

Mitac MX2-10ADP-D-FL-DX8 (Intel Raptor Lake-S, 12/13/14th Gen Intel Core-i, 4x LAN, 3x RS232, Hailo-8) <b>[FANLESS]</b>
  • Intel Raptor Lake-S !
  • 4x 2.5G LAN !
  • Hailo-8 Support !
  • PCIe Gen4 X8 + X8 !

Rugged Fanless Embedded System Supports Intel® Raptor Lake-S Refresh Core-i Processor up to 65W

  • AI Inference
  • Intel® Raptor Lake-S Refresh 14th/Raptor Lake-S 13th/Alder Lake-S 12th Core-i processor (Up to 65W)
  • Support 2 x DDR5 SO-DIMM (Up to 96GB)
  • HDMI, DisplayPort, VGA, 4 x 2.5G LAN
  • Support 8 x USB, 3 x RS232, and 8-bit DIO
  • 9~48V Wide Power Range
  • Support up to NVIDIA RTX A2000 / RTX 4060 GPU
  • Support up to 8 x Hailo-8™ AI Processor
  • Support up to 208 TOPs
  • Support Hailo-8™ Software Development Kit


Share

1059.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
MECHANICAL THERMAL DESIGN Fanless w/o Venting Holes / Options with 2 x Internal 40x40x20 System Fan (Supporting NVIDIA RTX A2000/RTX 4060 Graphic Cards)
MOUNTING Wallmount
DIMENSIONS (W X D X H) 10.6” x 9.7” x 5.0” (268 x 246 x 128 mm)
WEIGHT 7,7 kg (17 lb)
SYSTEM CPU

14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Core i9/i7/i5/i3/Celeron/Pentium (Up to 65W) / *Please see the CPU Options in Docs / Manuals
CHIPSET Intel® R680E
SYSTEM MEMORY DDR5 4800 MHz / 2 x 262-pin SO-DIMM / Max. 96 GB (Non-ECC/ECC)
GRAPHICS Intel® UHD Graphics
DISPLAY INTERFACE VGA / DisplayPort 1.4 / HDMI 1.4
STORAGE SLOT

2 x 2.5 HDD / SSD (1 w/ Removable HDD Bay, 1 w/ Internal HDD Bracket) / 1 x M.2 2280/2260/2242 NVMe / SATA SSD / 1 x M.2 2242/2260 SATA SSD/ 1 x mSATA
ETHERNET 4 x Intel® I226-LM 2.5G LAN
AUDIO Realtek® ALC888 internal Buzzer
I/O CHIPSET Nuvoton NCT6126D
TPM Nuvoton NPCT760AABYX TPM2.0
EXPANSION SLOT 1 x M.2 2230/ 2242 / 2260 / 2280 M key (PCIeX4 NVME, SATAIII)/ 1 x mPCIe Full / Half size (USB2.0 / PCIeX1 / SATAIII)/ 1 x M.2 2230 E key (CNVi , PCIeX1, USB 2.0) / 1 x M.2 3052 / 3042 / 2242 / 2260 B key (USB3.0 , SATAIII, PCIeX1) w/ 2 x SIM slot / PCIe 4.0 X16 slot / PCIe 4.0 X1 slot
INDICATOR DIO / LAN1~4 ACT / Power LED / HDD LED
FRONT I/O 1 x HDMI 1.4
/ 2 x USB 3.2 Gen2 / 2 x SIM Card Slot w/ Cover
/ 1 x 2.5" SATAIII HDD / SSD Bay
REAR I/O 4 x RJ-45 / 6 x USB 3.2 Gen 2 (10 Gbps) / 3 x RS232 / 422 / 485 (Support Power 5V / 12V) / 6 x SMA Antenna (Optional for WiFi/LTE function) / 1 x 8-bit GPIO (in DB9 Connector) / 1 x PCIe x1 slot / 1 x DisplayPort 1.2
/ 1 x VGA
/ 1 x Mic-in
/ 1 x Line-out
/ 1 x PCIe x16 slot
/ 1 x 2-pin Terminal Block Remote Power Reset
/ 1 x 3-pin Terminal Block Power Input
/ 1 x 2-pin Terminal Block Remote Power on / off
POWER REQUIREMENT POWER INPUT 9~48V Wide Range DC Input w/ Terminal Block Connectivity
POWER ADAPTER Optional
ENVIRONMENTAL OPERATING TEMPERATURE 35W TDP Processor: -40°C to 70°C / 65W TDP Processor: -40°C to 50°C / with 0.7m/s Air Flow and Wide Temperature Memory/Storage
OPERATING HUMIDITY 10% ~ 90% R/H (Non-condensing
STORAGE -40 ~ 85°C (-40 ~185°F)
VIRBRATION AND SHOCK RESISTANCE Operating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64) Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
CERTIFICATION CE / FCC Class A / LVD CoC: EN62368-1

OS OS SUPPORT Linux (support by request) / Windows® 10 64-bit / Windows® 11 64bit,
PACKING LIST PACKAGE 1 x Quick Installation Guide / 1 x Embedded System / 1 x CPU Cooler (passive) / 1 x Wall Mount Brackets
/ 1 x 3 pin Terminal Block Power Connector / 2 x 2 pin Terminal Block Male Connector
/ 1 x 30 cm SATA & SATA PWR Y Cable (3rd SSD/HDD needs optional SATA Y cable
