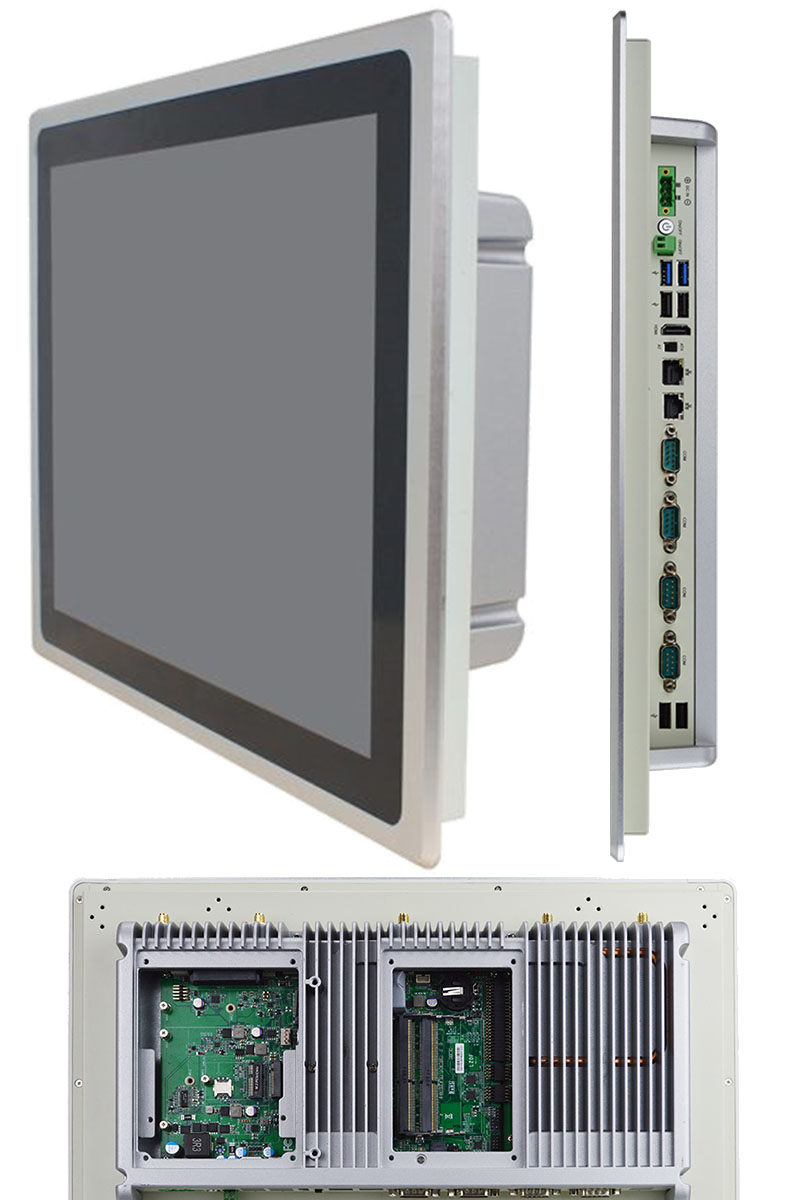

Jetway HPC156C-DCP1135G7 Panel-PC (15.6" TFT, Touch Panel, Intel i5-1135G7, 12-36V DC) [FANLESS]

Jetway HPC156C-DCP1135G7 Panel-PC (15.6" TFT, Touch Panel, Intel i5-1135G7, 12-36V DC) <b>[FANLESS]</b>
  • Intel i5-1135G7 !
  • 15.6" TFT ! !
  • Fanless !

  • 15.6” 250 nits TFT LCD with LED backlight
  • 10-points Multi Capacitive Touch
  • Support Open frameless design
  • A true Flat, easy to clean front surface with edge to edge design
  • Aluminum Die-Cast Panel PC series, support for easy HDD and DRAM installation
  • Support Cable less design
  • 12~36 V DC input Support, with Electrical Over Stress (EOS), OVP design
  • VESA Support 100x100mm


Share

1498.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
Display – NEMA 4 rugged protection, metal front bezel
– 15.6″ With LED Backlight
– 250 nits
– 262K display color
– 1920 x 1080 @60Hz resolution
– 170°/170° viewing angle (H/V)
– 0.17925 x 0.17925mm pixel pitch
– 16:9 aspect ratio
– 800:1 contrast ratio
– 35ms response time
Touch Screen – projected capacitive type
– 386.81 x 237.12mm ±0.3mm active range
– Transparency ≧ 85%
– Surface Hardness ≧ 6H (JIS-5400)
Case – Aluminum panel
– Iron case
– White color
– Spray paint coating requirement
Main System – Intel® Tiger Lake i5-1135G7 2.4GHz/QC processor
– 2* DDR4 SO-DIMM (Max 64GB)
– 256MB SPI Flash ROM
– Watchdog Timer 256 levels, 0~255 sec.
– OS Support Windows 10 / Linux
Expansion – 1* M.2 E key (2230) for WIFI
– 1* M.2 B key (3042/3052/6570) for 4G/5G Module (4pcs Built in Antenna)
Storage – 1* 2.5” SATA HDD
– 1* M.2 M key (2242/2280, PCI-Ex4)
I/O Connector – 2* USB3.2 (Gen. 2)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232 (option 16bit GPIO)
– 1* HDMI
– 1* AT/ATX Mode Button
– 2* RJ45 (1* Intel® I225-V 2.5GbE, 1* Intel® I219LM GbE)
– 1* 12~36V DC-in Locking Jack
– 1* Power button
– 1* 2pin Front Power button
Power Input – 12~36V DC-in
– AC version: 100~240V AC-DC 90W power adapter or
– DC version: 12VDC with over current protection fuse
Power Consumption – 42W
Dimensions – 406.81 * 259.12 * 56.00mm
Compliance – CE, FCC, option
Safety – Shock: 1ms duration
– Vibration: 5~500Hz/1 Grms
Temperature – Operating: : -10°C ~ 60°C
– Storage: -20°C ~ 70°C
