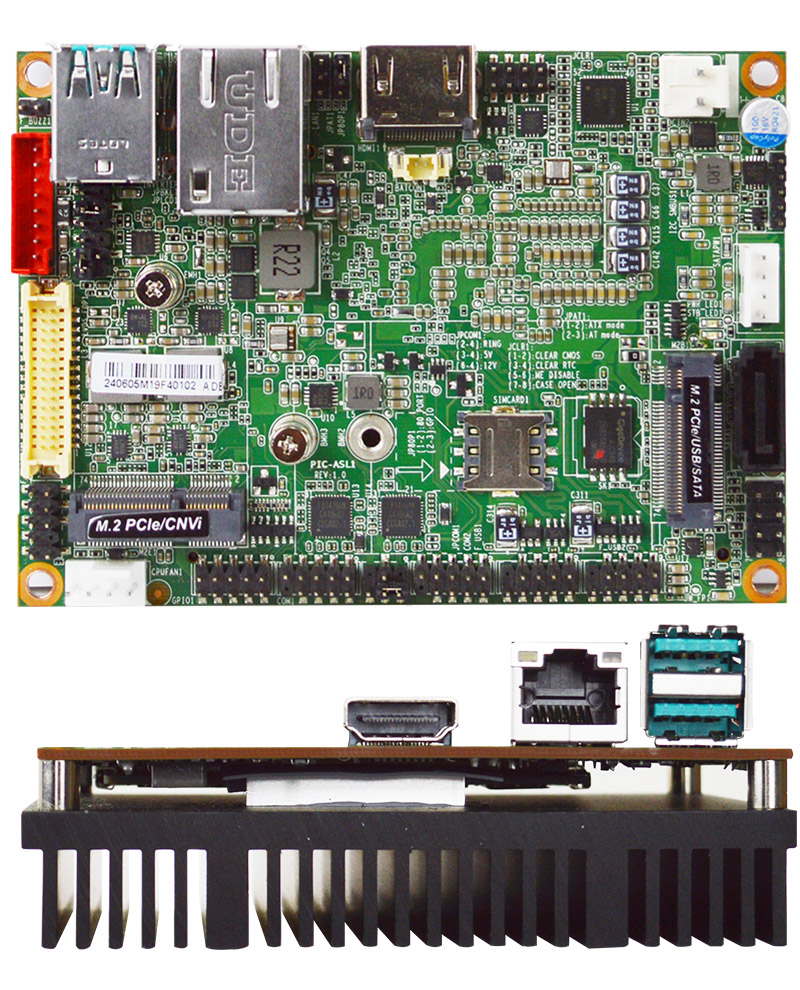

Jetway PIC-ASL1-74330010 Pico-ITX (Intel Atom Processor X)

Jetway PIC-ASL1-74330010 Pico-ITX (Intel Atom Processor X)
  • Intel ATOM X !
  • Dual Display !
  • -20 - 60°C !
  • pico-ITX !

  • Powered by Intel® x7213RE/x7433RE Processor (Formerly Amston Lake)
  • High-Performance Memory: Supports DDR5 SO-DIMM, up to 32GB
  • Dual Display Support: 1 x HDMI for 4K display and 1 x LVDS Co-lay with eDP
  • Storage & Expansion: 1 x SATA III, 1 x M.2 E-Key, 1 x B+M Key paired with 1 x Nano SIM Slot
  • Comprehensive I/O: 2 x USB 3.2 Gen2, 4 x USB 2.0, 2 x RS-232/422/485
  • Enhanced Security: Supports Intel fTPM
  • Wide Operating Temperature: from -20 ~ 60°C for different Industrail application


Share

369.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:

MB FORM FACTORPico-ITX
CPUOnboard Intel Atom® x7213RE Processor (Formerly Amston Lake, TDP 9W)
Onboard Intel Atom® x7433RE Processor (Formerly Amston Lake, TDP 9W)
For additional compatible CPUs, please contact regional sales
CHIPSETIntel® SoC
MEMORY1 x DDR5 4800MHz, Single Channel SO-DIMM, up to 32GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (Integrated fTPM)
RTC BATTERYLithium Battery
DIMENSION (W X D)100.0 (W) x 72.0 (D) mm (3.9″ x 2.8″)
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 12V
POWER ON MODEAT / ATX (Default) Mode
CONNECTORInternal 2-pin Header
DISPLAY
GPUIntel® UHD Graphics
LVDS1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1080 @60Hz / Co-Lay eDP)
HDMI1 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 2 Displays
AUDIO
CODECRealtek Audio Codec
Line-outInternal Header for Line-Out
MIC-inInternal Header for MIC-In
LAN
ETHERNET1 x RJ45 for Realtek® RTL8111H GbE
USB PORT
USB2 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
Internal Header for 4 x USB 2.0
SERIAL PORT
COMInternal Header for 2 x RS-232/422/485
INTERNAL I/O
GPIO8-Bit
SMBUSYes
FAN1 x 4-pin Connector for CPU Fan (PWM Mode)
FRONT PANELHDD Active LED
Power LED
Power On/Off
Reset
ADDITIONAL1 x Chassis intrusion
1 x AT/ATX Mode Selection
STORAGE
SATA1 x SATA III
1 x SATA Power Connector
EXPANSION
M.21 x B+M-Key 2242/3042/3052 (USB 3.2/SATA III/PCIe 3.0 x2)
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1)
SIM1 x Nano SIM Card Slot
ENVIRONMENT & CERTIFICATION
SHOCK15G, 11ms duration
VIBRATION1 Grms/ 5~ 500Hz/ Operation
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% relative humidity, non-condensing
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONEU RoHS
China RoHS
Data sheet Download (PDF)
Data sheet Print view
