CTF1040-SXLD - VGA/DVI 10.4" TFT - Touchscreen USB - Video - Autodimmer - Audio [1024x768, Contrast 1200:1, LED] -TRANSFLECTIVE-

CTF1040-<b>SXLD</b> - VGA/DVI 10.4" TFT - Touchscreen USB - Video - Autodimmer -  Audio [1024x768, Contrast 1200:1, LED] <b>-TRANSFLECTIVE-</b>
3D 360° View
  • DVI + D-SUB-15
  • Audio speakers !
  • 1024x768 !
  • Auto-Dimmer !

New ! With digital DVI input !

New ! With special sunlight readable transflective TFT and high contrast (1200:1) and Anti-Glare surface !

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

Using tra
[more]

Share

749.00 EUR
incl. 19% VAT, plus shipping
In Stock (5 pcs)

4 von 5 Sternen
5 ratings
Add to cart
Compare
Front

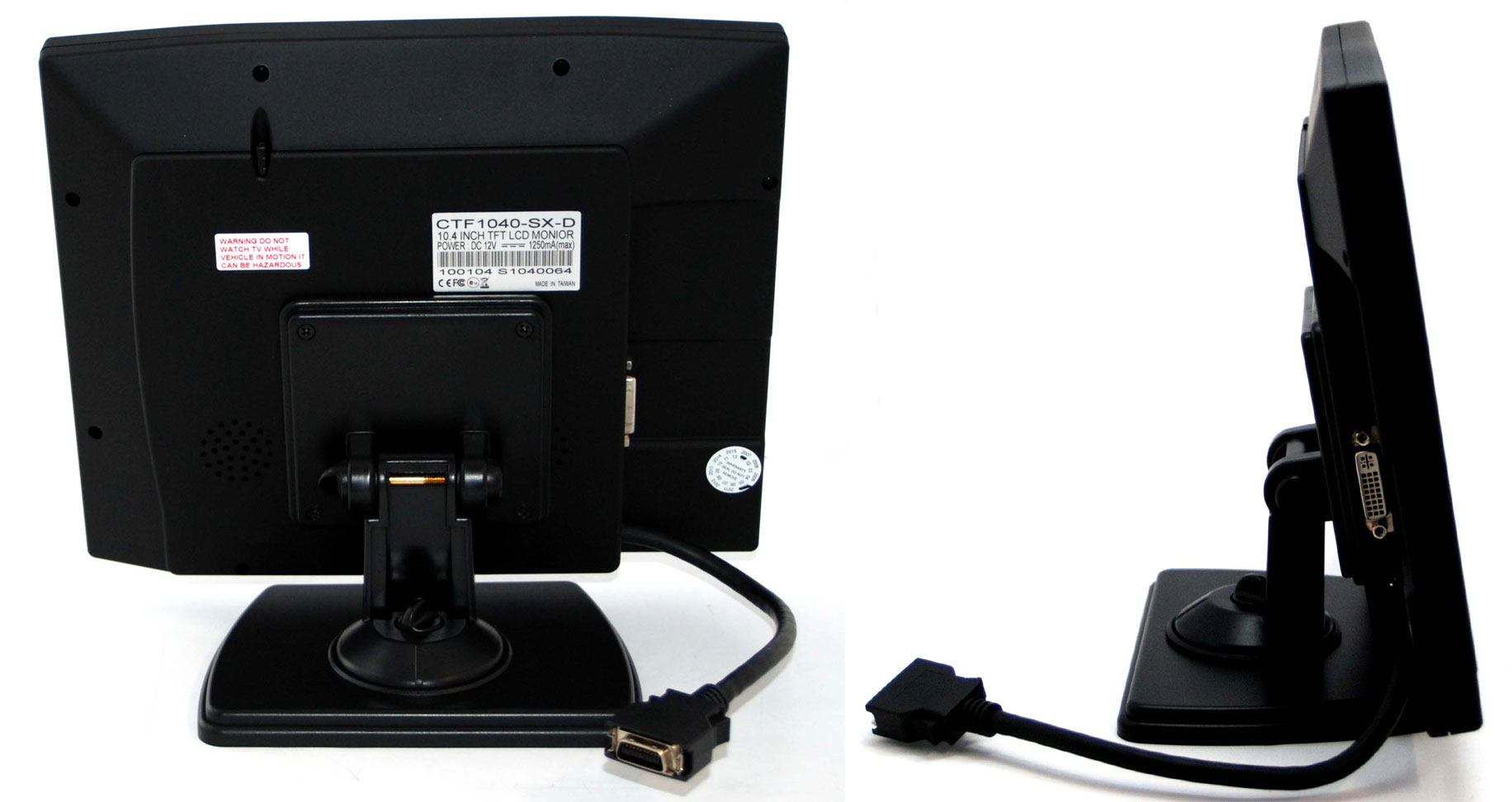

Rear
Side
LCD Size 10.4"
Aspect Ratio 4:3
VGA resolutions 640x480-1920x1200
Native resolution 1024x768
Dot resolution 3072x768
Brightness 500
VGA Input D-SUB 15 + DVI
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12-24VDC
Power Consumption 15W
Case size 252 x 208 x 31 mm
Visible area 211 x 158 mm
Certificates CE, E1
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
no Headrest mount
yes TS pencil
no Earphone
yes Adjustable video aspect
no Mirrorable video
yes Reverse camera input

New ! With digital DVI input !

New ! With special sunlight readable transflective TFT and high contrast (1200:1) and Anti-Glare surface !

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the readability is still ensured by a transmissive backlight.

The new CTF-1040-SXD TFT-Display is equipped with a 10.4" TFT panel and comes with many nice features. In any case it is the ideal display- and input-unit for your Laptop, CarPC or HTPC. Because of the 4:3 aspect ratio and the size of 10.4", the display is perfectly suitable for beeing used in POS-section or on boats. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has among other features integrated Stereo-speakers and an rear camera input and the Auto dimmer sensor in the front will enable perfect viewing pleasure also during the night. On the rear side there is integrated an holder for the touchscreen pencil.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTF-1040-SXD can be used with any PC/MAC with VGA- (or DVI-) and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..




Sunlight-readable-test with CTF700-SH in Death Valley (USA)

Spezifications
Screen size 10.4" digital
Aspect Ratio 4:3 wide TFT screen
Dot Resolution 3072x768= 2,359,296 dots
Physical Resolution 1024x768
Viewing angle 176° H/V (Super MVA Technology)
Supported Resolutions 640x480-1920x1200
Color configuration RGB stripe
Power input DC 12VDC
Power consumption max. 15W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
1x DVI input
Dimensions Display Case : 252mm x 208mm x 31mm
Display : 211mm x 158mm
Video input signal 1.0Vp-p, composite video
Brightness 500 cd/m²
Contrast 1200:1
Vibration IEC68-2-6
Operating Temperature -30° bis 70°C
Features Full function OSD control (englisch)
Built-in Stereo-speakers
Touchscreen-pencil integrated in rear enclosure
Auto-Dimmer
VESA compliant mounting holes (75mm) + metal rail
Auto Power On/Off
Automatic switching to rear camera (by a 12V cable)

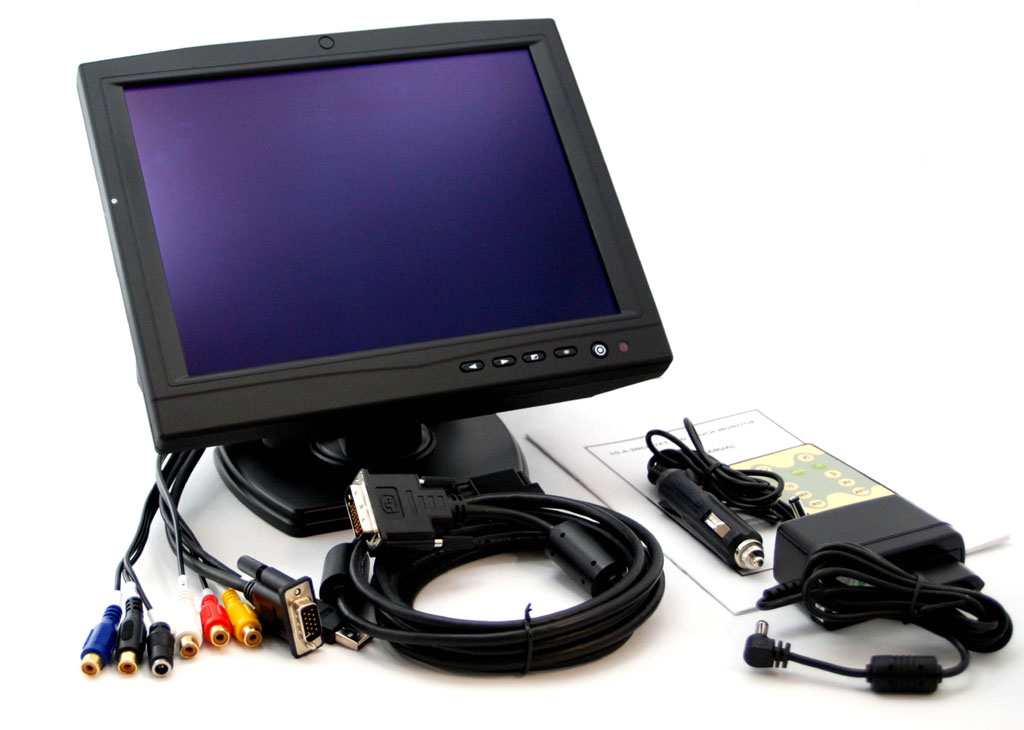

What is included ? - 10.4" VGA/DVI Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash VESA mounting bracket
- Touchscreen pencil
- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- DVI-cable
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 5 ratings
3 von 5 Sternen from JohanALR am 21.08.2014 |

Good size w sufficient resolution - not a crappy 800x600. Nice idea with dual inputs, but suffers from bad image noise using DVI input with supplied cable, using VGA input instead.

Readable in sunlight, but not terribly bright, indeed not very bright at all, probably OK for text but terrible for images/movies.

Price/performance ratio just barely OK.

4 von 5 Sternen from niederhauserurs am 20.06.2011 |

Bin mit dem neuen Bildschirm sehr zufrieden. Ist im Sonnenlicht sehr gut ablesbar.

4 von 5 Sternen from stradis am 04.05.2011 | | See all my comments

extrem zufrieden,
touch ok
helligkeit ok
schärfe ok
super leichtes display

4 von 5 Sternen from post@kajosc.com am 19.08.2010 |

Qualitativ hochwertiges Produkt!

Exzellenter Lieferservice!

5 von 5 Sternen from PR-SEC am 29.07.2010 | | See all my comments

Very good!!!

Update from :2010-07-29 06:29
This Product is verry good! Mielettömän nopea toimitus ja luotettavaa palvelua! Tuote on todella hyvä ja toimii kuin pitääkin! (Nopea, herkkä kosketuspinta, kevyt) SUOSITTELEN!!! -Peter (Finland)
