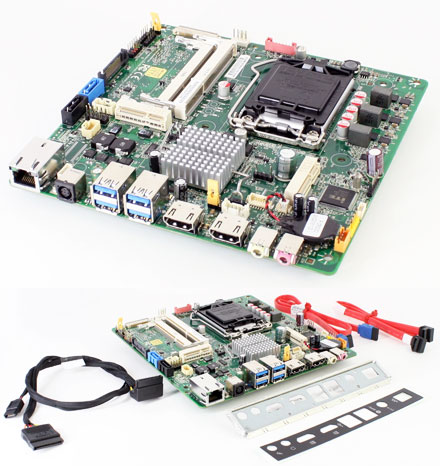

Mitac PH10LI Thin-ITX (Intel H87, LGA1150)

PRODUCT IS CURRENTLY NOT AVAILABLE !

3D 360° View

Support Intel 4^th generation Intel Core Processor
LGA1150 Socket H3 CPU compatible (up to 65W)
Dual channel DDR3 with two connectors (up to 16GB)
Features high speed Gigabit Ethernet connection
Two PCI Express Mini Card connector for expansion
Features 2 SATA3 (6Gbps)
Hi-Speed external USB3.0 ports support
HDMI-in & HDMI-out display connectivity
Embedded LVDS/ connectivity

CPU	LGA1150
Graphics	Intel HD Graphics
Formfactor	ITX (17x17cm)
RAM	2x SO-DDR-III
Audio	RealTek ALC662 5.1
Base	Intel ITX

USB	8x USB 2.0, 4x USB 3.0
Firewire	--
IDE/SATA	2x SATA
LAN	1x 10/100/1000
Parallel	--
Serial	--

yes	TV-Out
no	PCI
yes	Mini-PCI
no	IDE
no	DVI
yes	800x480 Resolution

no	Passive-Cooling
no	PCI-Express
no	PCMCIA
yes	SATA
yes	CPU changeable
no	Compact Flash

RAM :

Form Factor

Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters
[6.7 inches] x 170.18 millimeters [6.7 inches])

Processor

Intel Haswell H3 LGA1150 CPU Socket Support up to Dual/Quad core 65W

Chipset

PH10LI: Intel Lynx Point H87 Chipset
PH11LI: Intel Lynx Point H81 Chipset

Memory

Support for DDR3 1066/1333/1600 MHz SO-DIMMs Support for up to 16 GB of system memory
204-pin DDR3 SO-DIMM	2

Display

HDMI-in & HDMI-out connector 40P Embedded LVDS connector

Audio

RealTek* ALC662 audio codec for 5.1 (6-channel) High Definition Audio (HD Audio) and AC ’97 Audio. Included are: Back panel audio connectors: Line-out & Mic Onboard S/PDIF digital audio header

Expansion Capability

PCI Express Full-/Half-Mini Card slot	1
PCI Express Half-Mini Card slot	1

Peripheral Interfaces

USB 2.0 front panel ports	6 (Headers)
USB 2.0 back panel connectors (black)	2
USB 3.0 high-current/fast-charging ports (Blue)	4(PH10LI) 2(PH11LI)
SATA 3.0 Gb/s	2

Legacy I/O

Legacy I/O Controller (ITE IT8519)

LAN Support

REALTEK RTL8111G Gigabit (10/100/1000 Mb/s) Ethernet LAN controller including an RJ-45 back panel connector with integrated status LEDs

BIOS

Support for Advanced Configuration and Power Interface (ACPI) setting

Instantly Available PC Technology

Suspend to RAM support Wake on PCI Express, LAN, front panel, serial, and USB ports

Hardware Monitor Subsystem

Hardware monitoring through the Nuvoton ITE IT8519 legacy I/O controller, including: Remote thermal sensor 4-pin system fan header with speed control

Power Requirement

19V DC connectivity via back-panel DC jack(5.00mm/ ID, 7.5mm/ OD)

Environment

Operating Temperature: 0 °C to +50 °C Storage Temperature: -20°C to +70°C

Safety

CE FCC UL

Data sheet	Download (PDF)
Data sheet	Print view
Mitac Catalogue	Download (PDF)
Mitac Edge AI Guide	Download (PDF)
Specifications	Download (PDF)
Header pins	Download
